Working with Stages

Each Kargo Stage is represented by a Kubernetes resource of type Stage.

The Stage Resource Type​

Like most Kubernetes resources, a Stage is composed of a user-defined spec field and a system-populated status field.

A Stage resource's spec field is itself composed of three main areas of concern:

  • Requested Freight

  • Promotion template

  • Verification

The following sections will explore each of these spec sections as well as status in greater detail.

Requested Freight​

The spec.requestedFreight field is used to describe one or more "types" of Freight, as specified by an origin, that the Stage's promotion process, as specified by spec.promotionTemplate, will operate on, and the acceptable sources from which to obtain that Freight. Those sources may include the origin itself (e.g. a Warehouse) and/or any number of "upstream" Stage resources.

info

Warehouses are the only type of origin at present, but it is anticipated that future versions of Kargo will introduce additional origin types. This is why "types" of Freight are described by an origin field having kind and name subfields instead of being described only by the name of a Warehouse.

For each Stage, the Kargo controller will periodically check for Freight resources that are newly available for promotion to that Stage.

When a Stage accepts Freight directly from its origin, all new Freight created by that origin (e.g. a Warehouse ) are immediately available for promotion to that Stage.

When a Stage accepts Freight from one or more "upstream" Stage resources, Freight is considered available for promotion to that Stage only after being verified in at least one of the upstream Stages by default. Alternatively, users with adequate permissions may manually approve Freight for promotion to any given Stage without requiring upstream verification.

You can control this behavior using the availabilityStrategy field, which accepts either:

  • OneOf (default): Freight is available for promotion after being verified in at least one of the upstream Stages
  • All: Freight is available for promotion only after being verified in all upstream Stages listed in the sources
tip

Explicit approvals are a useful method for applying the occasional "hotfix" without waiting for a Freight resource to traverse the entirety of a pipeline.

In the following example, the test Stage requests Freight that has originated from the my-warehouse Warehouse and indicates that it will accept new Freight directly from that origin:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: test
  namespace: kargo-demo
spec:
  requestedFreight:
  - origin:
      kind: Warehouse
      name: my-warehouse
    sources:
      direct: true
  # ...
# ...

In this example, the uat Stage requests Freight that has originated from the my-warehouse Warehouse, but indicates that it will accept such Freight only after it has been verified in the test Stage:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: uat
  namespace: kargo-demo
spec:
  requestedFreight:
  - origin:
      kind: Warehouse
      name: my-warehouse
    sources:
      stages:
      - test
  # ...

In the next example, the prod Stage requests Freight that has originated from the my-warehouse Warehouse, but indicates that it will accept such Freight only after it has been verified in both the qa and uat Stages:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
   name: prod
   namespace: kargo-demo
spec:
  requestedFreight:
  - origin:
      kind: Warehouse
      name: my-warehouse
    sources:
      stages:
      - qa
      - uat
    availabilityStrategy: All
  # ...

Stages may also request Freight from multiple sources. The following example illustrates a Stage that requests Freight from both a microservice-a and microservice-b Warehouse:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: test
  namespace: kargo-demo
spec:
  requestedFreight:
  - origin:
      kind: Warehouse
      name: microservice-a
    sources:
      direct: true
  - origin:
      kind: Warehouse
      name: microservice-b
    sources:
      direct: true
  # ...
tip

By requesting Freight from multiple sources, a Stage can effectively participate in multiple pipelines that may each deliver different collections of artifacts independently of the others.

This is advanced configuration. If you're very new to Kargo and requesting Freight from multiple origins, you probably didn't mean to.

Promotion Templates​

The spec.promotionTemplate field is used to describe how to transition Freight into the Stage. The spec.promotionTemplate.steps field describes the discrete steps of a promotion process in detail.

In the following, very common example, the promotionTemplate describes steps to:

  1. Clone a Git repository containing Kubernetes manifests and Kustomize configuration, checking out two different branches to two different directories.

  2. Clears the contents of one working tree, with intentions to fully replace its contents.

  3. Runs the equivalent of kustomize edit set image to update a kustomization.yaml file with a reference to an updated public.ecr.aws/nginx/nginx container image.

  4. Renders the updated manifests using the equivalent of kustomize build.

  5. Commits the updated manifests and pushes them to the stage/test of the remote repository.

  6. Forces Argo CD to sync the kargo-demo-test application to the latest commit of the stage/test branch.

promotionTemplate:
  spec:
    vars:
    - name: gitopsRepo
      value: https://github.com/example/repo.git
    - name: imageRepo
      value: public.ecr.aws/nginx/nginx
    - name: srcPath
      value: ./src
    - name: outPath
      value: ./out
    - name: targetBranch
      value: stage/${{ ctx.stage }}
    steps:
    - uses: git-clone
      config:
        repoURL: ${{ vars.gitopsRepo }}
        checkout:
        - branch: main
          path: ${{ vars.srcPath }}
        - branch: stage/${{ ctx.stage }}
          create: true
          path: ${{ vars.outPath }}
    - uses: git-clear
      config:
        path: ${{ vars.outPath }}
    - uses: kustomize-set-image
      as: update-image
      config:
        path: ${{ vars.srcPath }}/base
        images:
        - image: ${{ vars.imageRepo }}
    - uses: kustomize-build
      config:
        path: ${{ vars.srcPath }}/stages/${{ ctx.stage }}
        outPath: ${{ vars.outPath }}/manifests.yaml
    - uses: git-commit
      as: commit
      config:
        path: ${{ vars.outPath }}
        message: ${{ outputs['update-image'].commitMessage }}
    - uses: git-push
      config:
        path: ${{ vars.outPath }}
        branch: ${{ vars.targetBranch }}
    - uses: argocd-update
      config:
        apps:
        - name: kargo-demo-${{ ctx.stage }}
          sources:
          - repoURL: ${{ vars.gitopsRepo }}
            desiredRevision: ${{ outputs.commit.commit }}
info

For complete documentation of all Kargo's built-in promotion steps, refer to the Promotion Steps Reference.

Verification​

The spec.verification field is used to describe optional verification processes that should be executed after a Promotion has successfully deployed Freight to a Stage, and if applicable, after the Stage has reached a healthy state. The following example depicts a Stage resource that references an AnalysisTemplate named integration-test to validate the dev Stage after any successful promotion:

apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
  name: dev
  namespace: guestbook
spec:
  # ...
  verification:
    analysisTemplates:
    - name: integration-test
info

For complete documentation of how to perform verification, refer to the Verification Guide.

Status​

The status field of a Stage resource records:

  • Conditions containing the last observations of the Stage's current state.

  • The current phase of the Stage's lifecycle (distilled from the conditions).

  • Details about the last Promotion and any in-progress Promotion.

  • History of Freight that has been deployed to the Stage (from most to least recent) along with the results of any associated verification processes.

  • The health status of related Argo CD Application resources.

For example:

status:
  freightHistory:
  - id: 101bca5b0e18ca7913978a1da956308d2544f741
    items:
      Warehouse/my-warehouse:
        commits:
        - healthCheckCommit: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
          id: 961cfaedbc53aacdb65110028839a2c1c281290d
          repoURL: https://github.com/example/kargo-demo.git
        images:
        - digest: sha256:b2487a28589657b318e0d63110056e11564e73b9fd3ec4c4afba5542f9d07d46
          repoURL: public.ecr.aws/nginx/nginx
          tag: 1.27.0
        name: 666209fd9755a1e48bec6b27f5f447747410dd9e
        origin:
          kind: Warehouse
          name: my-warehouse
    verificationHistory:
    - analysisRun:
        name: test.01j2w7aknhf3j7jteyqs72hnbg.101bca5
        namespace: kargo-demo
        phase: Successful
      finishTime: "2024-07-15T22:13:57Z"
      id: 5535a484-bbd0-4f12-8cf4-be2c8e0041c9
      phase: Successful
      startTime: "2024-07-15T22:13:34Z"
  health:
    argoCDApps:
    - healthStatus:
        status: Healthy
      name: kargo-demo-test
      namespace: argocd
      syncStatus:
        revision: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
        status: Synced
    status: Healthy
  lastPromotion:
    finishedAt: "2024-07-15T22:13:25Z"
    freight:
      commits:
      - healthCheckCommit: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
        id: 961cfaedbc53aacdb65110028839a2c1c281290d
        repoURL: https://github.com/example/kargo-demo.git
      name: 666209fd9755a1e48bec6b27f5f447747410dd9e
      origin:
        kind: Warehouse
        name: kargo-demo
    name: test.01j2w7a15cxjjgejresfyw6ysp.666209f
    status:
      finishedAt: "2024-07-15T22:13:25Z"
      freight:
        commits:
        - healthCheckCommit: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
          id: 961cfaedbc53aacdb65110028839a2c1c281290d
          repoURL: https://github.com/example/kargo-demo.git
        name: 666209fd9755a1e48bec6b27f5f447747410dd9e
        origin:
          kind: Warehouse
          name: kargo-demo
      freightCollection:
        id: 101bca5b0e18ca7913978a1da956308d2544f741
        items:
          Warehouse/kargo-demo:
            commits:
            - healthCheckCommit: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
              id: 961cfaedbc53aacdb65110028839a2c1c281290d
              repoURL: https://github.com/example/kargo-demo.git
            name: 666209fd9755a1e48bec6b27f5f447747410dd9e
            origin:
              kind: Warehouse
              name: kargo-demo
        verificationHistory:
        - analysisRun:
            name: test.01j2w7aknhf3j7jteyqs72hnbg.101bca5
            namespace: kargo-demo
            phase: ""
          id: 5535a484-bbd0-4f12-8cf4-be2c8e0041c9
          phase: Pending
          startTime: "2024-07-15T22:13:34Z"
      phase: Succeeded
  observedGeneration: 1
  phase: Steady

Interacting with Stages​

Kargo provides tools to manage Stages using either its UI or CLI. This section explains how to handle Stages effectively through both interfaces.

info

Users with credentials for and sufficient permissions within the Kargo control plane's Kubernetes cluster can also manage Stage resources using kubectl.

Creating a Stage​

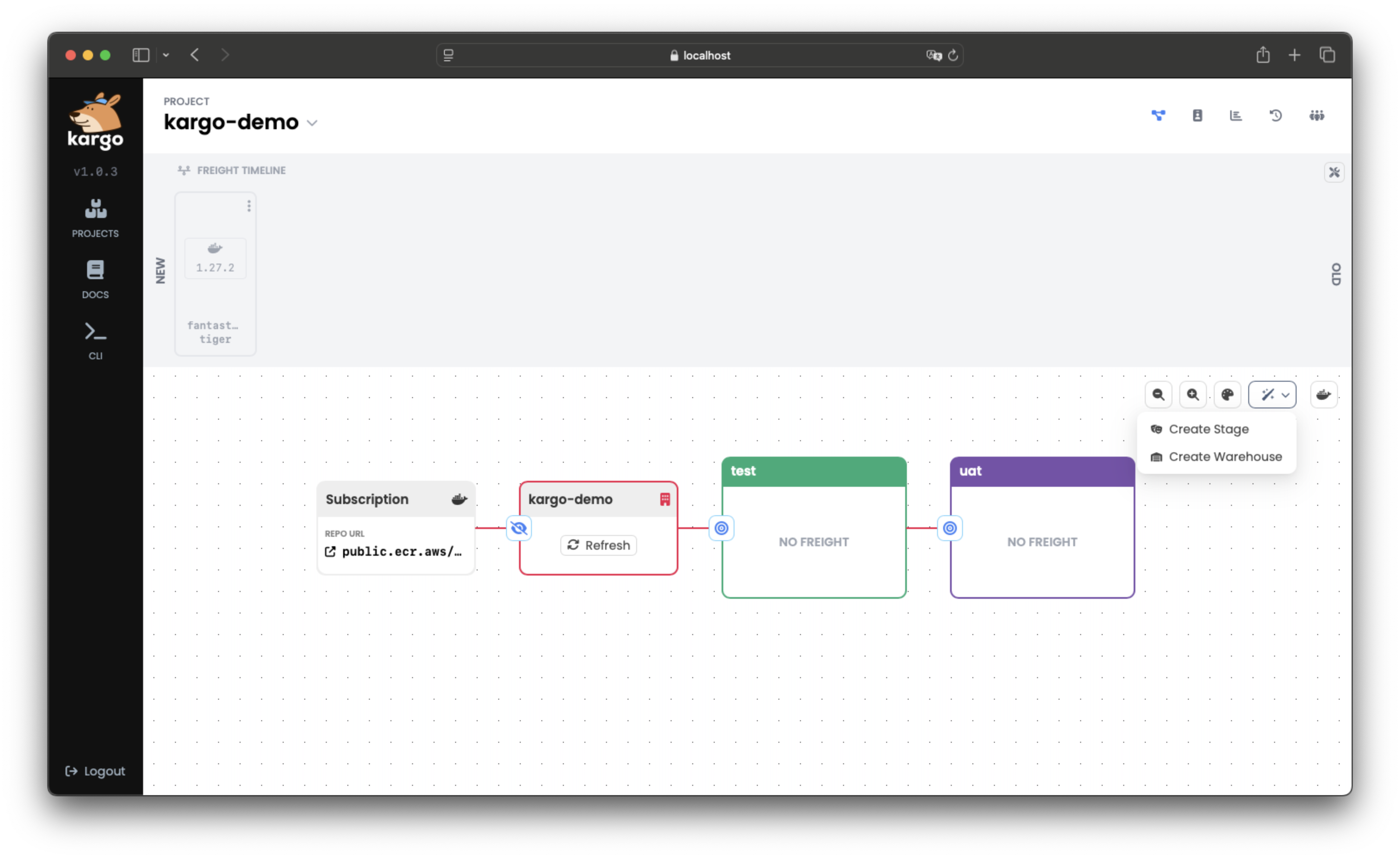

  1. Navigate to your Project in the Kargo UI and locate the action menu in the upper right corner of the pipeline:

    create-stage

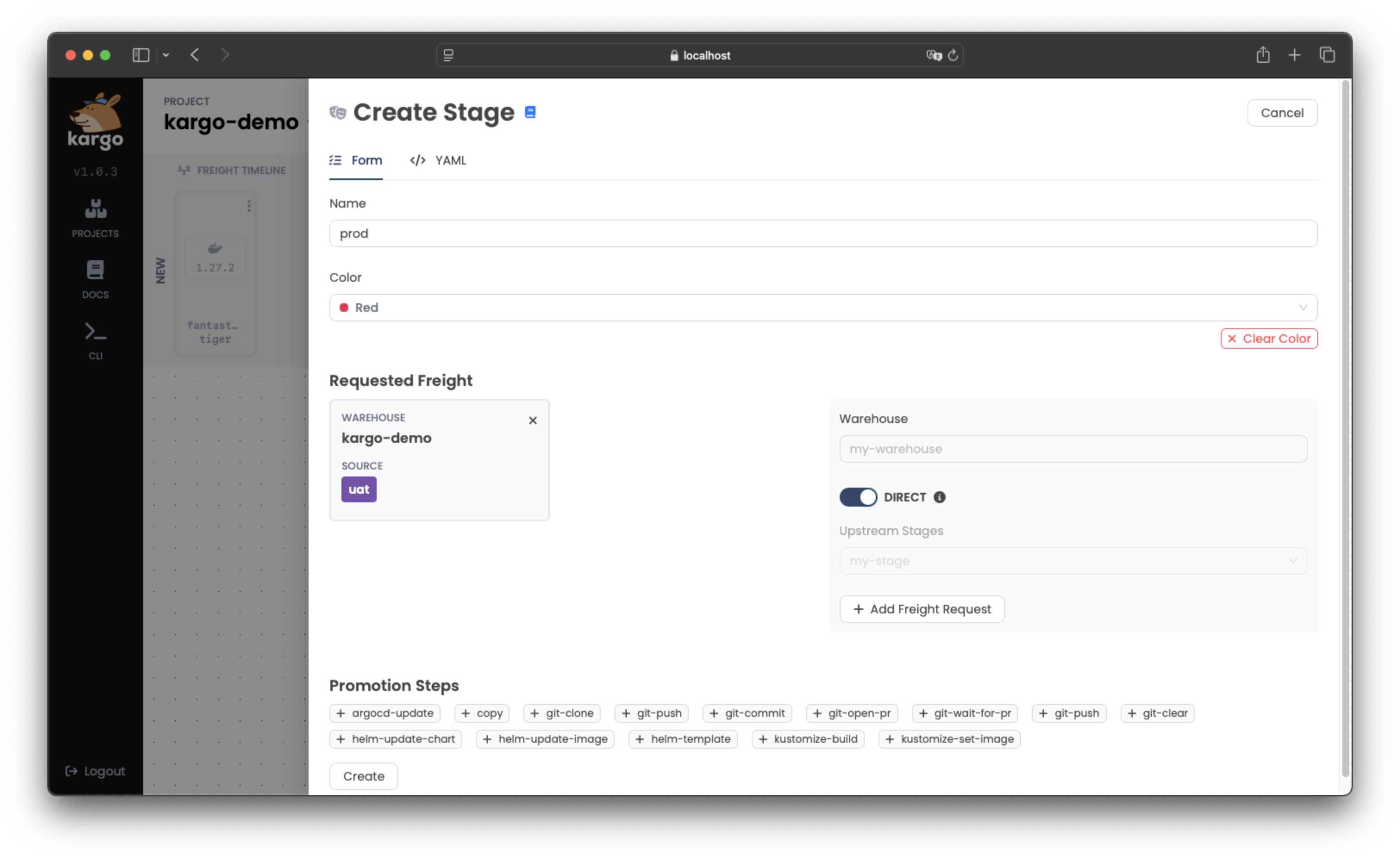

  2. Click the magic wand icon to open the dropdown, then select Create Stage.

    A form will appear to input details for a new Stage:

    create-stage

  3. Complete the form with the necessary details and submit it.

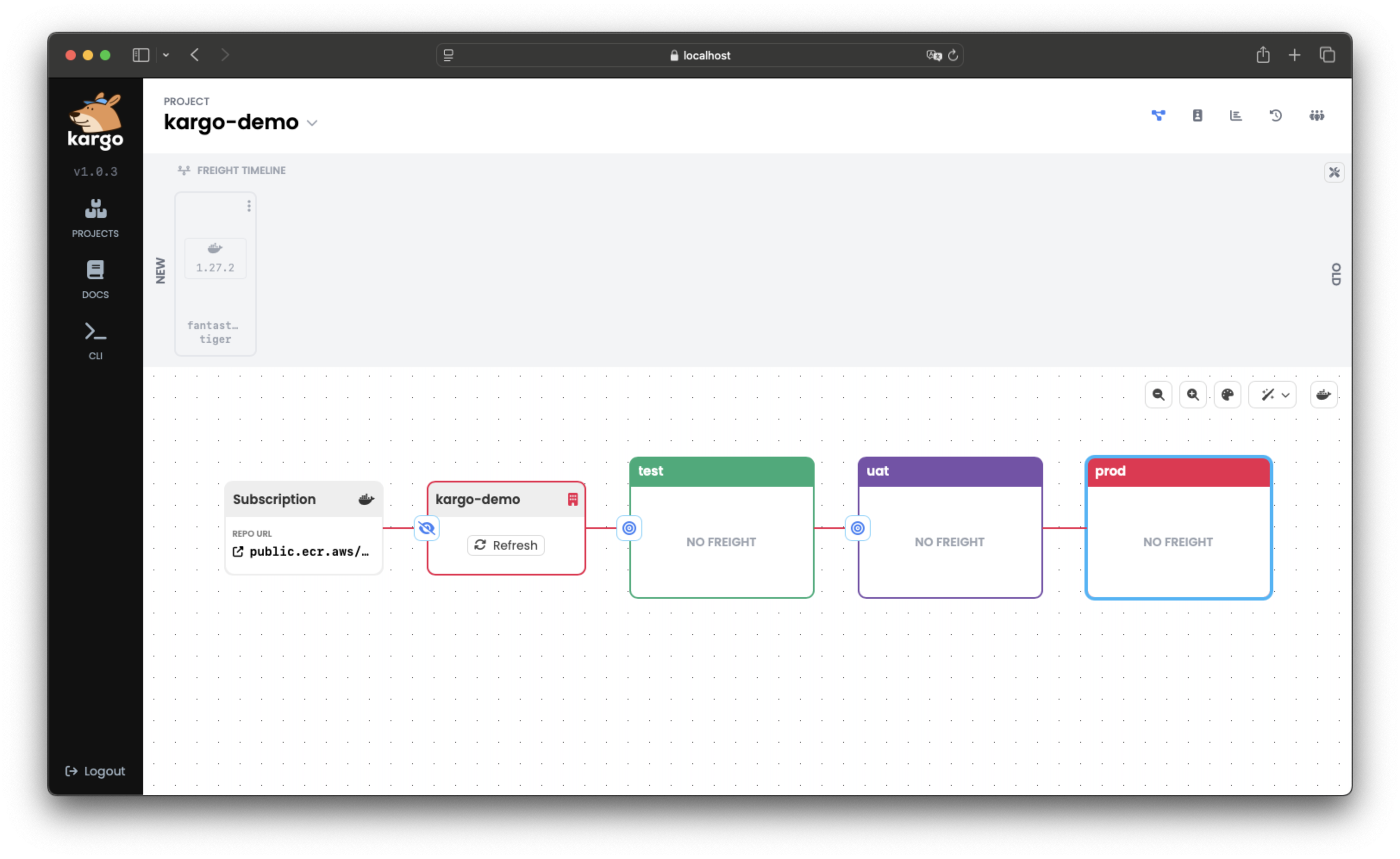

    The new Stage will be added to the pipeline, connected to other Stages based on your configuration:

    create-stage

Promoting Freight to a Stage​

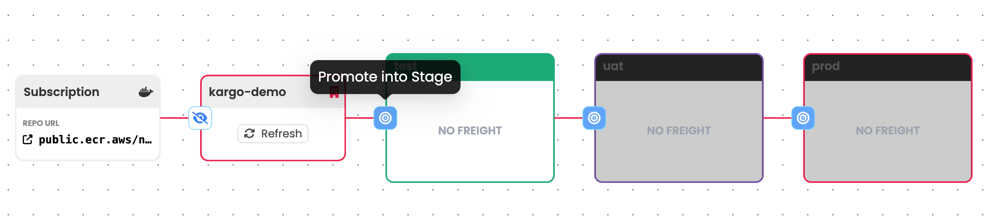

  1. Click on the target icon to the left of the Stage:

    Promote Freight to a Stage

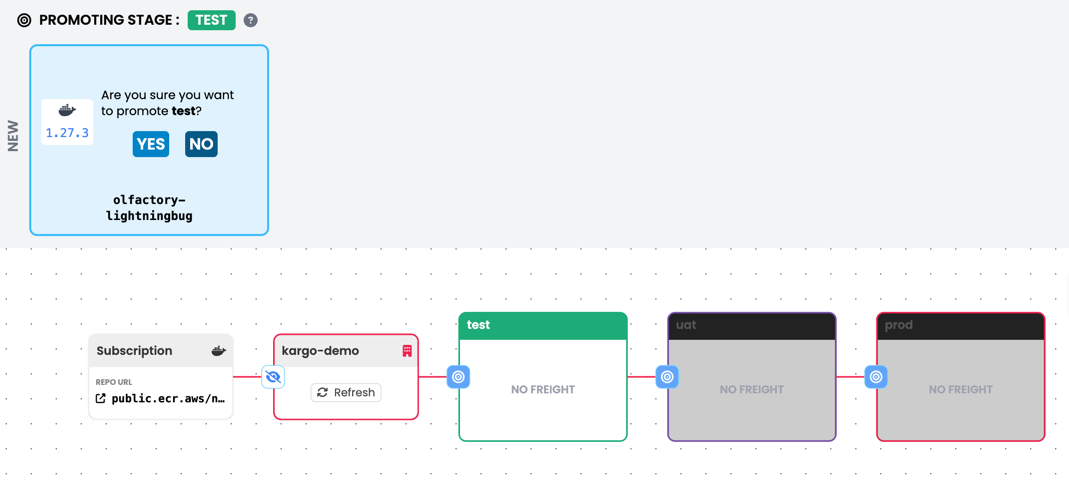

  2. Select the desired Freight from the Freight Timeline, and click Yes to promote:

    Promote Freight to a Stage

Deleting a Stage​

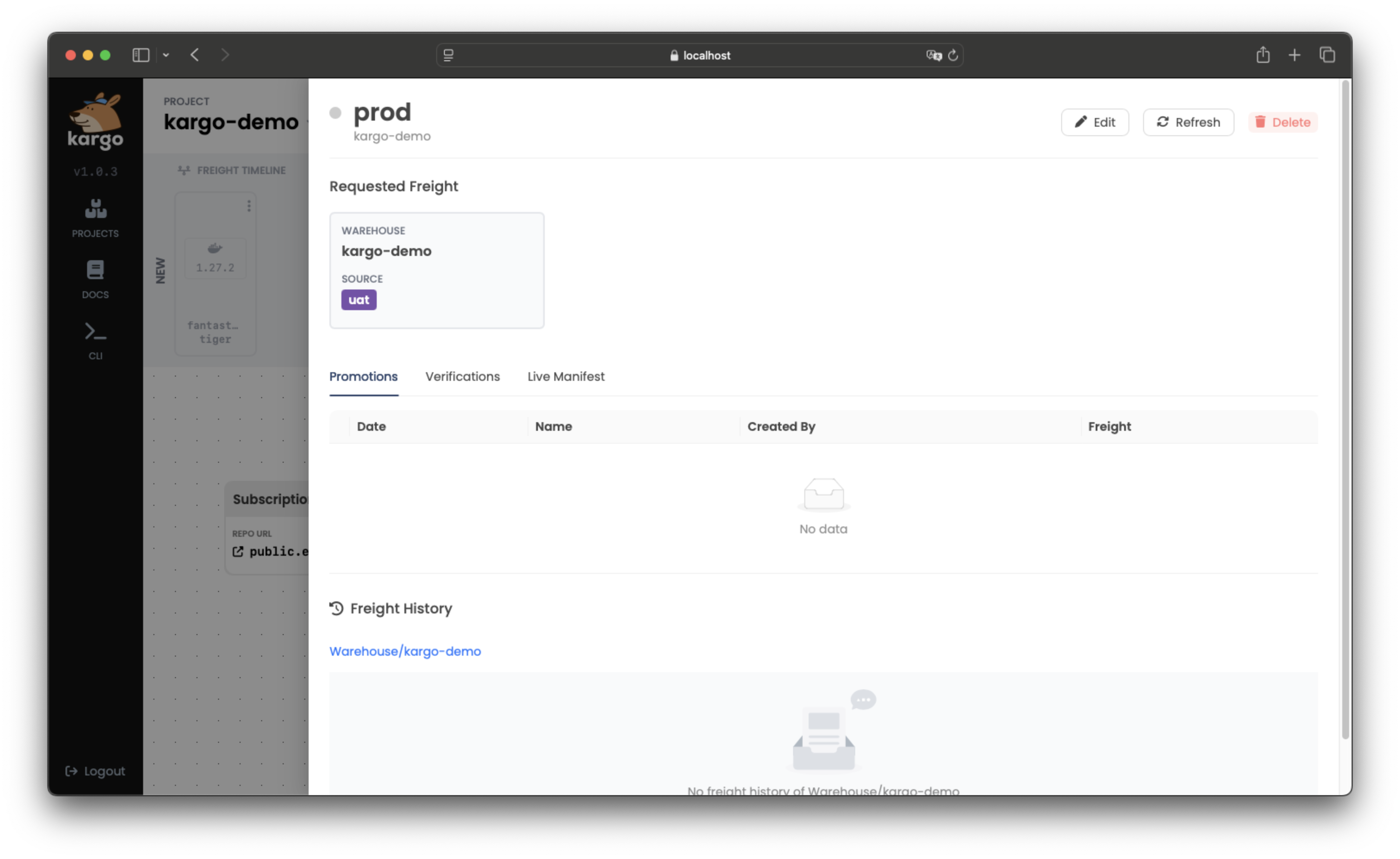

  1. Select the Stage you want to remove.

  2. Click Delete in the upper right corner of the pop-up window:

    delete-stage

Refreshing a Stage​

Refreshing a Stage triggers its reconciliation process, which includes checking for any newly-completed Promotions, queueing up the next, pending Promotion, when applicable, and executing any applicable health check processes.

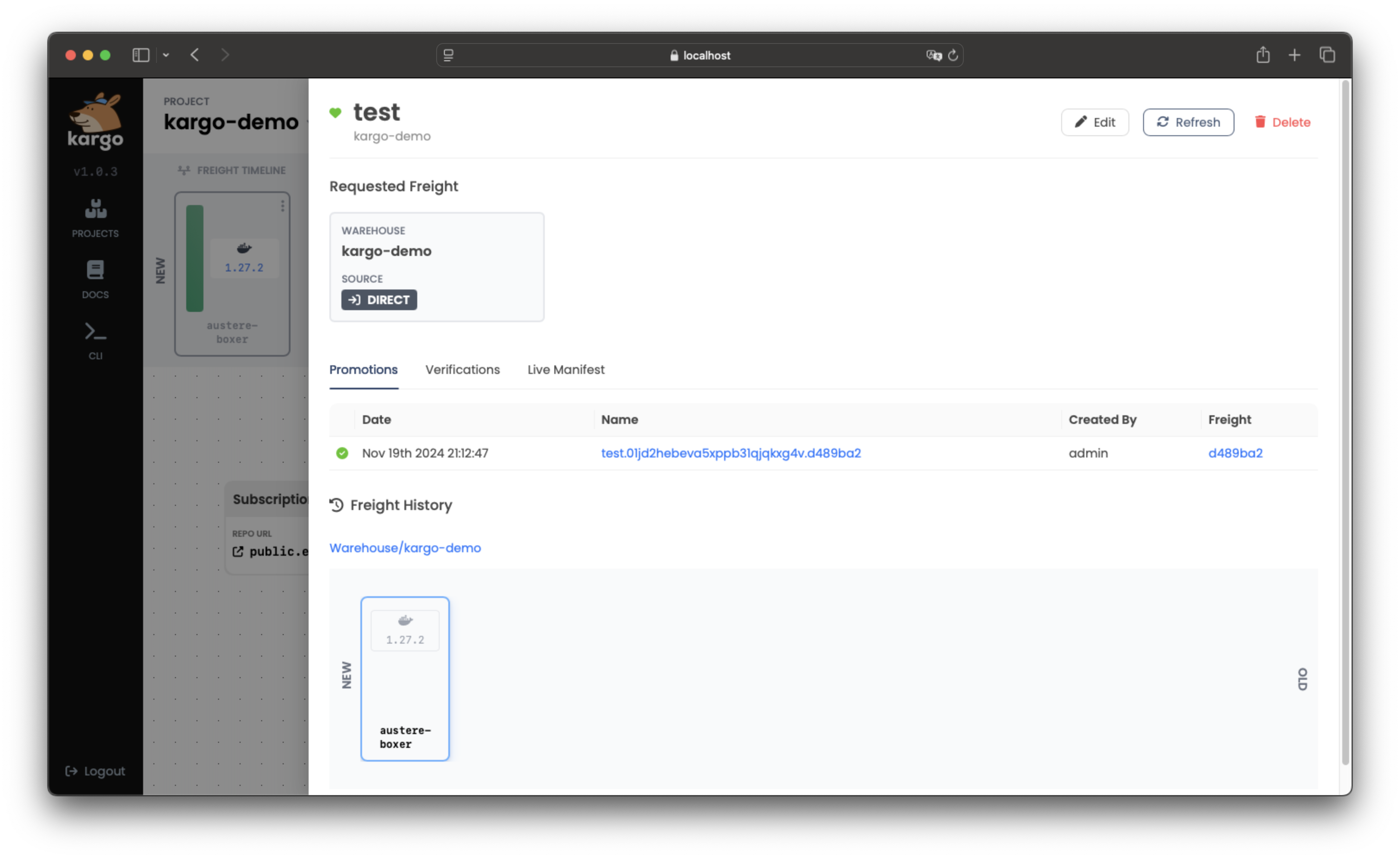

  1. Select the Stage you want to refresh.

  2. Click Refresh in the top-right corner of the pop-up window:

    refresh-stage

Reverifying a Stage's Current Freight​

Verification processes, which run automatically following each successful Promotion, can also be re-run on-demand. This is useful for re-attempting a failed verification process or just to validate that applications within the Stage are performing as desired.

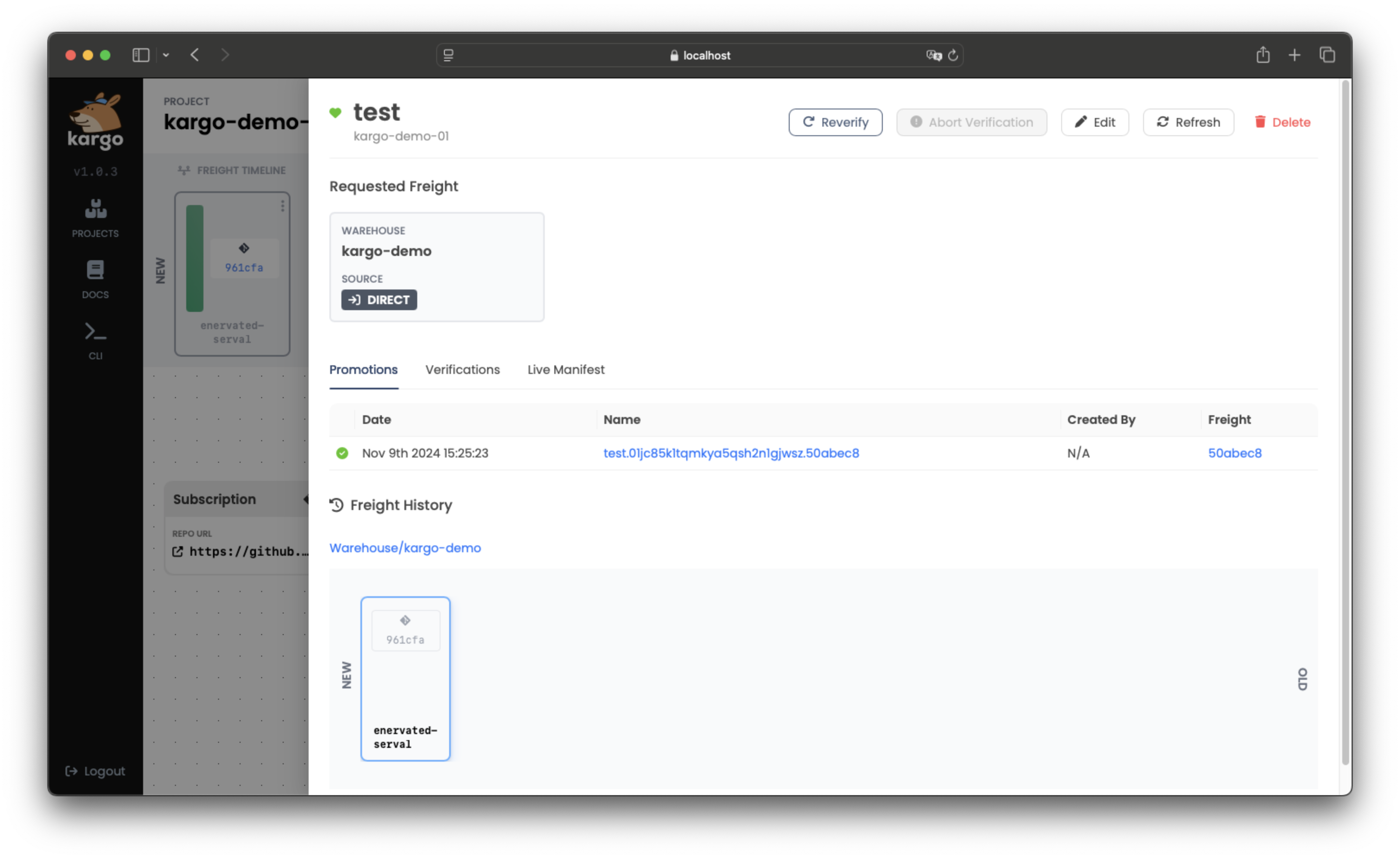

  1. Select the Stage you want to reverify and click Reverify at the top of the menu:

    verify-stage

    note

    If you wish to stop the in-progress verification, you can click Abort Verification.

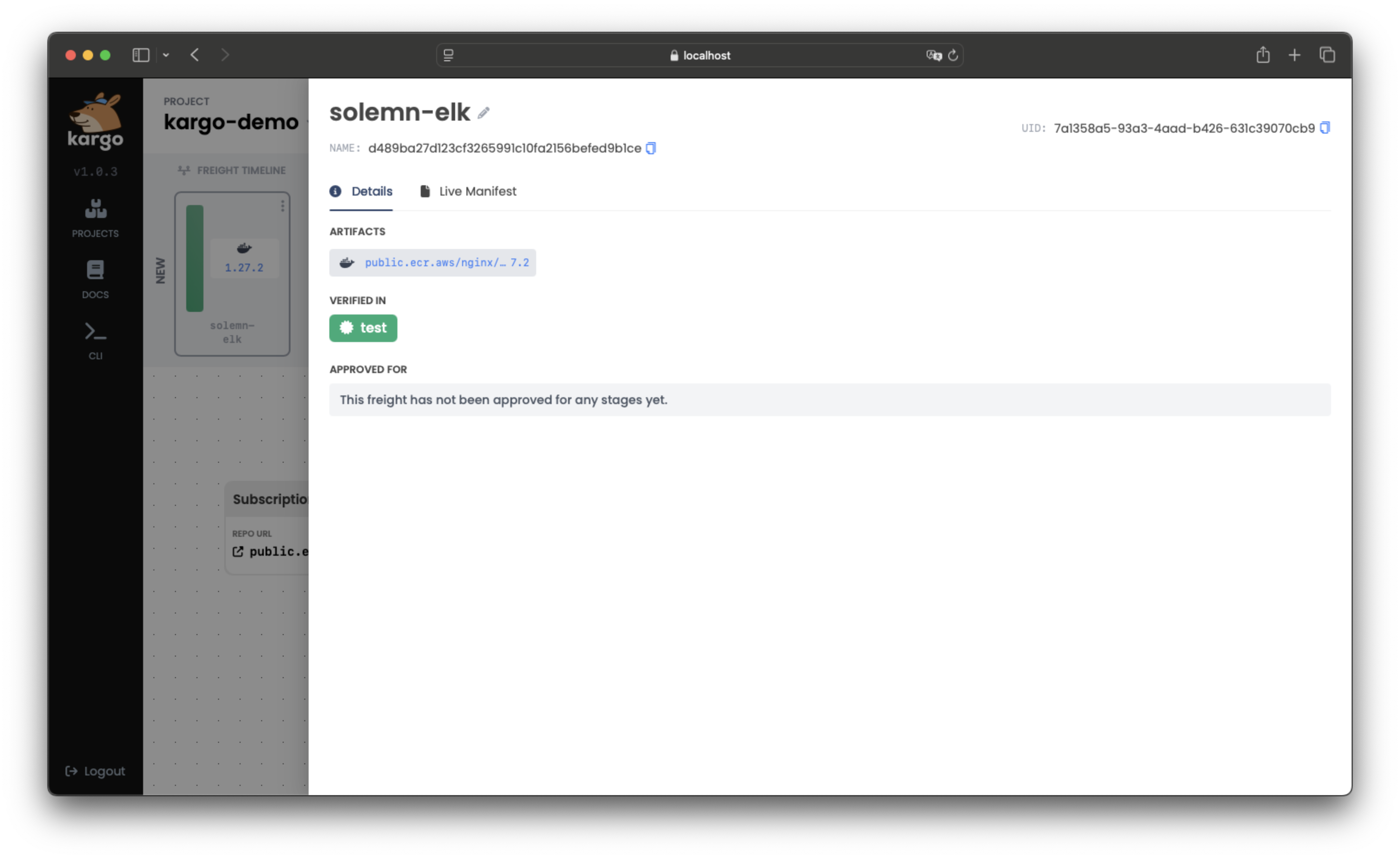

  2. To check the Stages where the Freight has been successfully verified, return to the Freight Timeline and select the Freight. Verified Stage names will appear under VERIFIED IN:

    verify-stage
